J Detect Pro Machine for Diamond Detect

A Compact & affordable lab-grown diamond detection device

$ 11,999.00

Convenient
Scan lab-grown diamonds at the convenience of your facility.

User-Friendly
Simple And Easy To Use. Just Plug and play.

Description

360° View

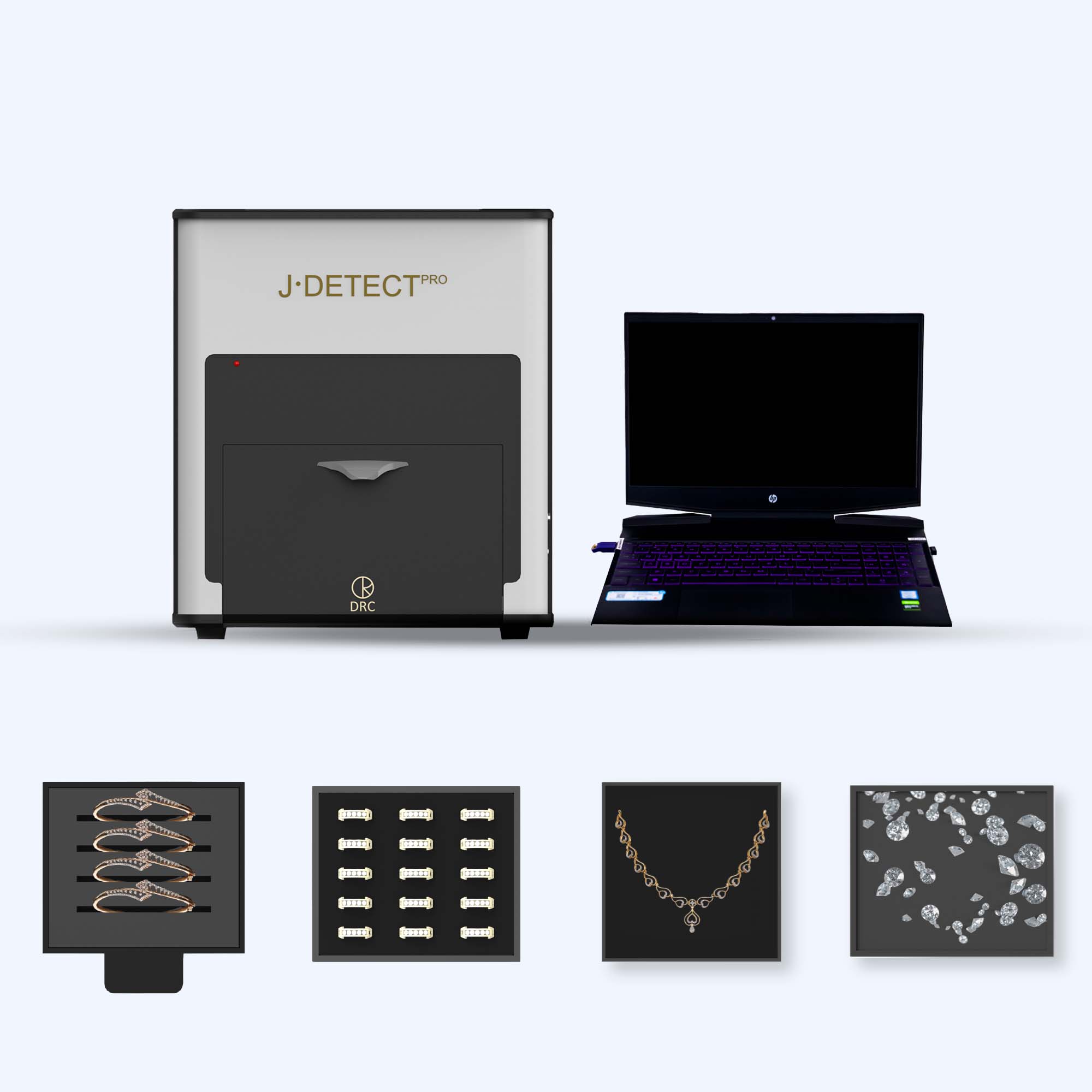

J Detect Pro is a cost-effective CVD/HPHT lab-grown diamond detector and has a scanning area of 5 X 4 inches within 45-90 seconds. Faster, smarter, and affordable.
➣ It operates with a highly efficient notebook laptop and comes with trays for different types of jewellery and loose diamonds.

OverView

Loose & Mounted

Detects

CVD/HPHT & Treated

Size

0.003 carat and larger

All Shapes

Scanning area

5 x 4 inches

Colors

D to K

Rough & Polished

Accuracy

98%

Scanning Time

45 to 90 Seconds

Key Features

Automatically Detects
Automatically detects lab-grown diamonds(CVD & HPHT) in bulk loose diamonds and mounted jewellery.

Colour Range
Colour ranges from D to K and Detects enhanced & treated diamonds in all shapes.



J Detect Pro Machine for Diamond Detect

Accuracy
High accuracy of over 98% in Automatic detection mode, and rest assured in an advanced quad screening mode.

Long UV
Exclusive internal long UV light to reduce false positive results.



J Detect Pro Machine for Diamond Detect

Zooming Option
20X – Zooming options and position pointer in advanced quad screening mode for accurate and easy screening.

Scanning Modes
Dual scanning modes for efficient scanning, completing the process within 45 to 90 seconds.

Print & Download
Print or Download a customized screening report and export the scan result in Excel.

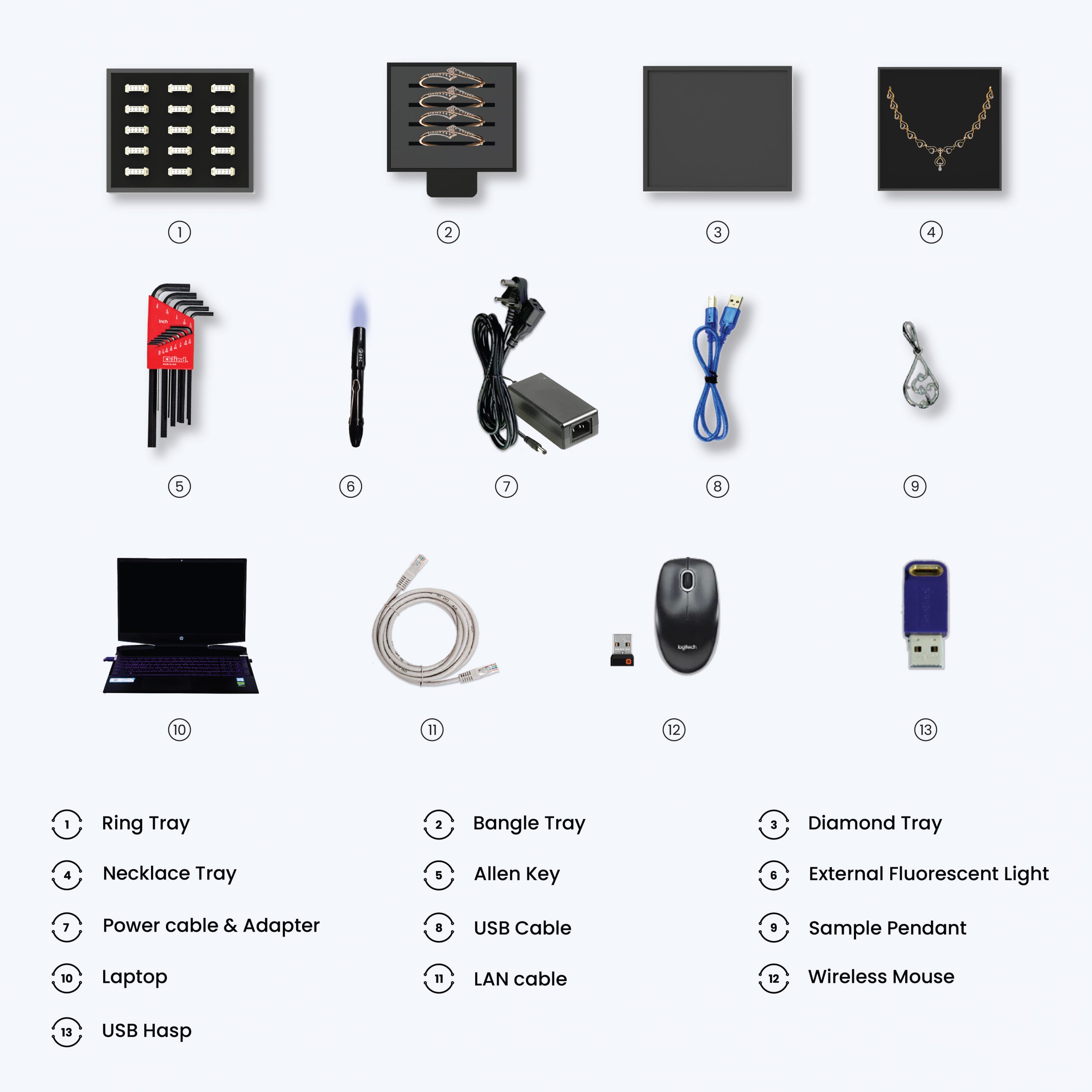

Included Accessories

Mounted Jewelry Tray

The Mounted Jewelry Tray contains slots for up to twenty-four (24) rings.  Pendants, earrings, neckless and other Jewelry can be positioned on this tray for scanning.

Bangle Tray

The Bangle tray contains slots for up to seven (7) bangles. Adjust height for better focus as per tray by uplifting the machine before scanning.

Loose Stone Tray

The Loose Stone Tray has an inscribed alpha-numeric grid to identify the location of specific diamonds when you view multiple stones…

Ring Tray

The Ring tray contains slots for up to seven (34) rings. Adjust height for better focus as per tray by uplifting the machine before scanning.

Technical Specification

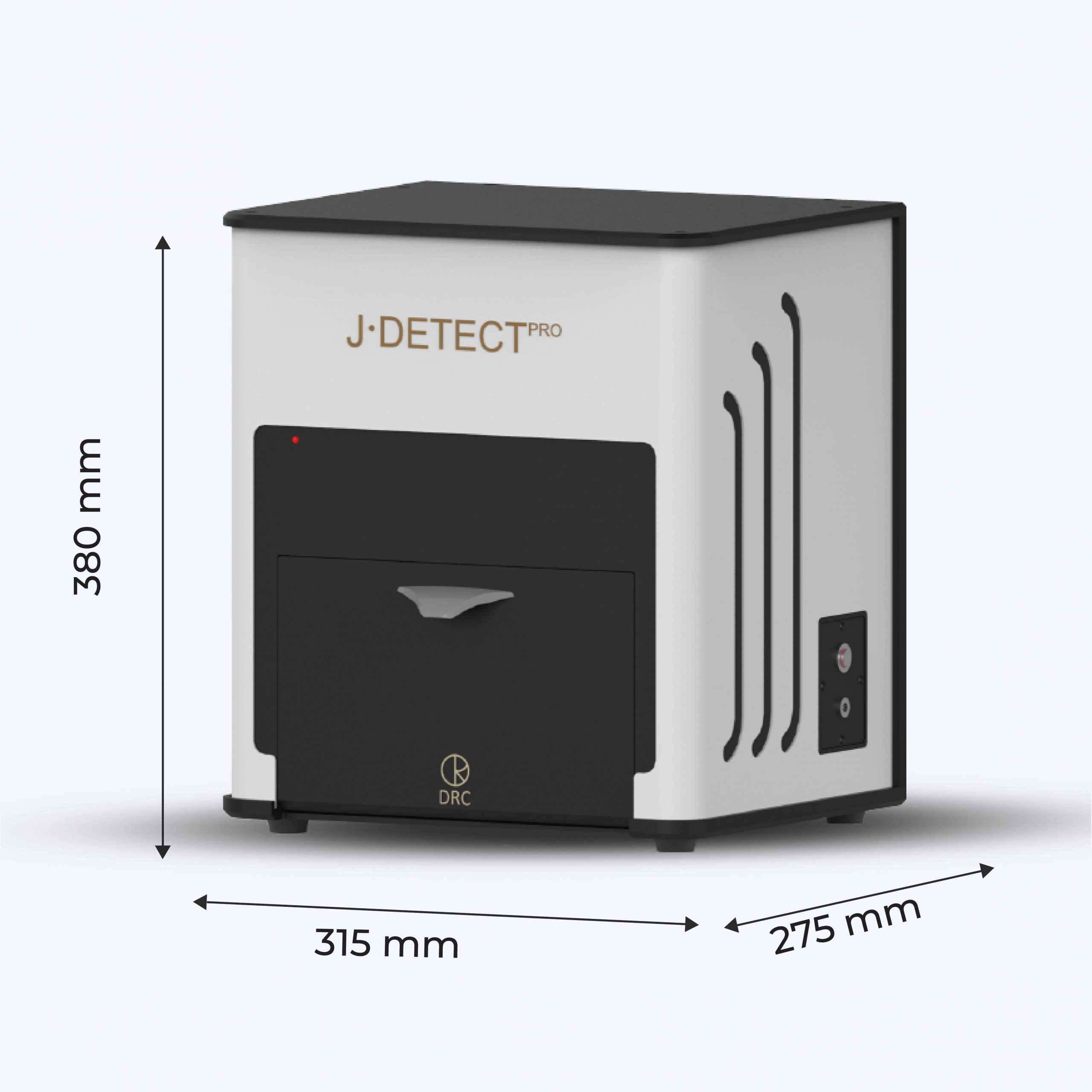

Dimensions:
315 x 275 x 380 (in mm)

Power Requirements:
100/240 volt

Temperature Range:
5° to 35° C

Weight:
18.18 KG

Windows 10 Laptop
Core i7, 8 GB RAM, 1 TB Storage
