ANNOUNCING an
INCREDIBLE ADVANCEMENT in MONEY-SAVING TECHNOLOGY
Automated Diamond Sorting form
The Global Leader in Diamond Industry Technology

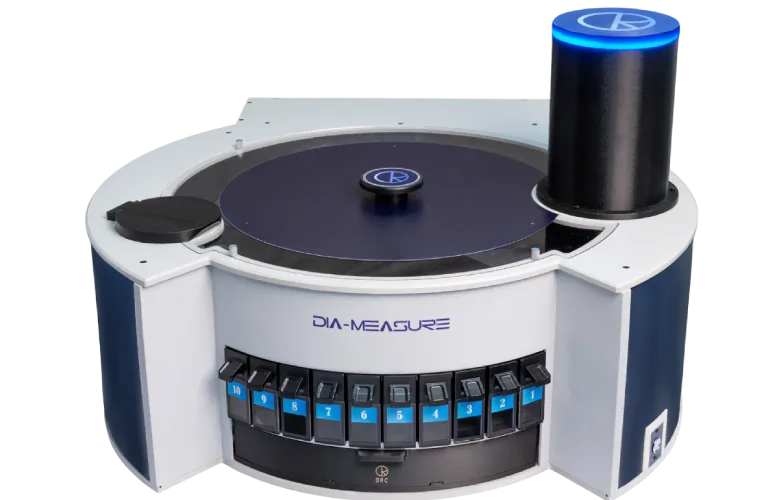

➣ The Dia Measure Machine is a cutting-edge automated system engineered to elevate the precision, speed, and efficiency of round melee diamond measurement and sorting.
➣ Seamlessly integrating mechanical, electronic, and optical components, the system delivers accurate geometric measurements as diameter and height-while also analysing key optical properties.
➣ Automated design minimises manual intervention, ensuring consistent quality control through advanced features, including dual-camera imaging, sensor-based detection, and air-jet sorting.
➣ Increasing throughput and efficiency, Dia Measure saves time and money while increasing production with the capacity to sort thousands of stones per hour with an accuracy of 0.005 mm.
Dia Measure Increases Productivity and Efficiency
Diamond Suppliers, Jewellery Manufacturers, Manufacturing Retailers
Twice monthly calibration assures the precise capture of every gemstone Measurement for accurate sorting
Its fully automated process replaces manual sorting and measurement, accelerating production while maintaining superior consistency and reliability.
Designed for high-volume operations such as jewellery manufacturing, the Dia Measure Machine significantly reduces labour costs and operational errors.

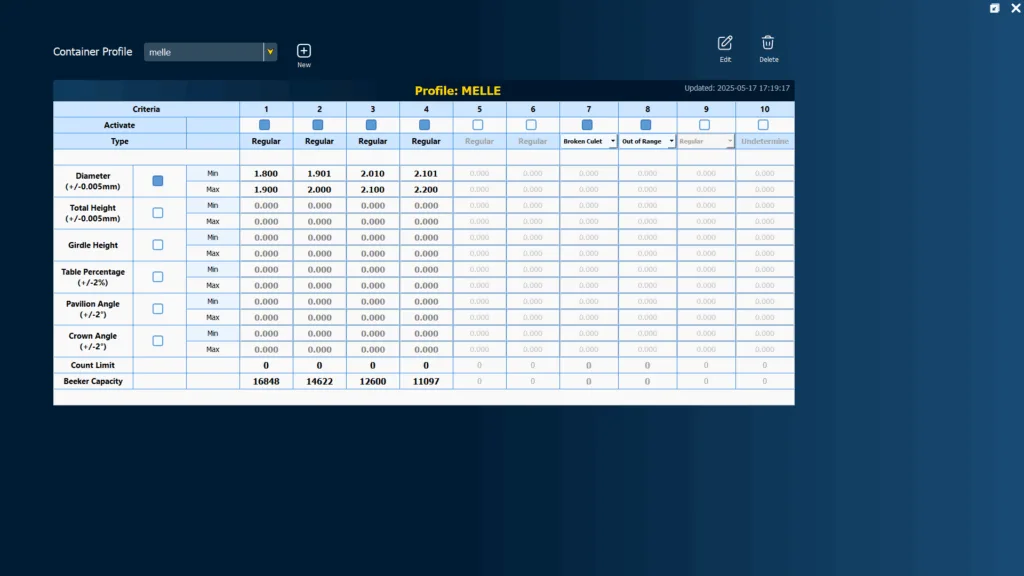

With customizable sorting profiles, users can tailor the system to meet specific measurement criteria, ensuring adaptability for diverse manufacturing requirements: i.e. matching girdle thickness or crown size.
Key Features of Dia Measure
Automated sorting of diamonds and round gemstones from 0.90 mm to 4.00 mm with ± 0.005 mm accuracy
Sorting by diameter including customer defined options for matching crown size or girdle thickness
Improve efficiency and productivity, reliably sorting thousands of stones per hour whenever and whatever you require
Save money and increase profitability : faster, more effective sorting of mixed and large parcels with lower operating costs.
Diamond manufactures can sort faster and more accurately to customer requests.
Jewelry manufacturers can sort to match crown size and/or girdle thickness.
Save money and increase profitability : faster, more effective sorting of mixed and large parcels with lower operating costs.
Diamond manufactures can sort faster and more accurately to customer requests.
Jewelry manufacturers can sort to match crown size and/or girdle thickness.

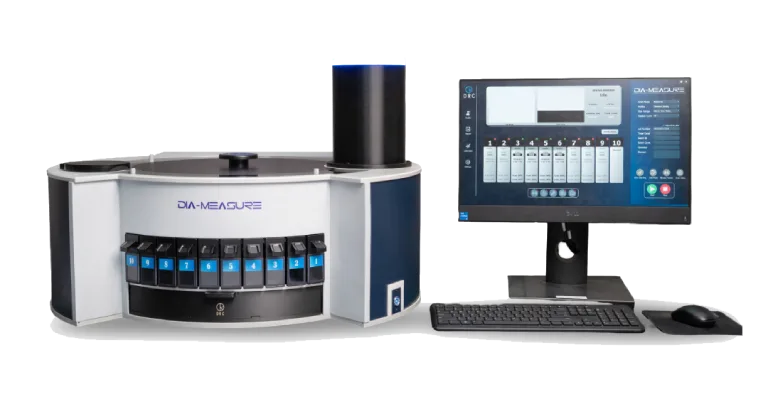

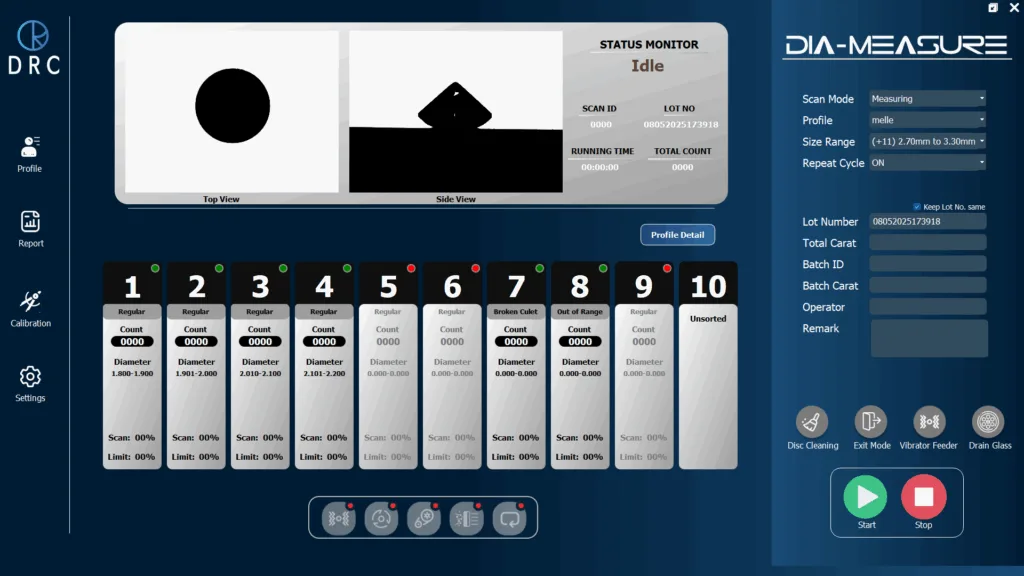

Dia Measure Come With Its Own Desktop PC And DRC’s Proprietary Software.
Size
33 in wide x 32 in deep x 22 in high (850x820x575 mm)
Weight
65 Kgs
Shipping
Factory direct with
on-sight installation
and training
Warranty
1 year comprehensive warranty with 24/7 Live Support
Overview
0.90 mm to 4.00 mm
5500+ Hours
±0.005 microns
Technical Specification
Dimensions:
820 mm (L) x 850 mm (W) x 575 mm (H)
Power Requirements:
110 – 230 V
Temperature Range:
25℃ – 35℃
Weight:
65 KG
Windows 11 Home PC
Core i7, 16 GB RAM, 512 GB Storage
